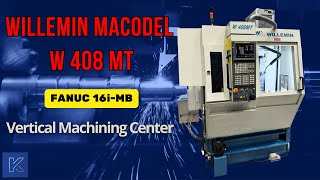

Willemin-Macodel W408 MT machining centre
SAINT-GENIX-LES-VILLAGES
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+33 4 86 11...
Show
+33 4 86 11 77 77
Portugal, Marinha Grande
TECHNICAL CHARACTERISTICS :
CNC control : FANUC 16i-MB
Number of axes : 5
Stroke X axis : 250 [mm]
Stroke Y axis : 200 [mm]
Stroke Z axis : 300 [mm]
Traversing feeds X, Y and Z axes : 30000 [mm/min]
Max. bar diameter in turning spindle : 32 [mm]
Main spindle max. speed : 6000 [rpm]
Main spindle max. power : 3.7 [kW]
Angular C axis stroke : 360 [°]
B axis swivelling stroke : 115 [°]
Spindle type : HSK-E40
Min. spindle speed : 500 [rpm]
Max. spindle speed : 30000 [rpm]
Spindle power : 10 [kW]
Tool changer magazin number of stations : 48
Max. tool lenght : 95 [mm]
Max. tool diameter : 63 [mm]
Lubrication tank capacity : 80 [l]
Collant pump flow rate : 40 [l/min]
Rated current : 25 [A]
Supply voltage : 400 [V]
Weight : 1700 [Kg]
EQUIPMENT INCLUDED:
x1 0-90° pivoting backworking unit (6th side machining)
x1 backworking vice
x1 RENISHAW TS27R tool probe
x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection
x68 type F35 turning collets
x9 HSK-40E milling/turning attachments
x1 IEMCA BOSS 332 E bar feeder
x1 spindle chiller
x1 cutting fluid chiller
x1 ELBARON mist extractor
x1 3-colour status lamp
x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body)
x1 set of technical manuals
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
HERMLE , DMU , monoblock , variaxis , chiron
CARACTÉRISTIQUES TECHNIQUES :
Année : 2007
Type de CN : FANUC 16i-MB
Nombre d'axes : 5
Course axe X : 250 [mm]
Course axe Y : 200 [mm]
Course axe Z : 300 [mm]
Vitesse déplacement rapide X, Y et Z : 30000 [mm/min]
Diamètre maxi. en barre broche de tournage : 32 [mm]
Vitesse maxi. broche de tournage : 6000 [tr/min]
Puissance maxi. broche de tournage : 3.7 [kW]
Course angulaire axe C : 360 [°]
Course angulaire axe B : 115 [°]
Attachement broche : HSK-E40
Vitesse mini. Broche : 500 [tr/min]
Vitesse maxi. broche : 30000 [tr/min]
Puissance broche : 10 [kW]
Nombre de postes magasin d'outils : 48
Longueur maxi. d'outil : 95 [mm]
Diamètre maxi. d'outil : 63 [mm]
Capacité bac d'arrosage : 80 [l]
Débit pompe d'arrosage : 40 [l/min]
Courant nominal : 25 [A]
Tension d'alimentation : 400 [V]
Poids : 1700 [Kg]
ÉQUIPEMENTS INCLUS:
x1 unité de reprise arrière pivotante 0-90° (usinage 6ième face)
x1 étau de reprise
x1 palpeur outil RENISHAW TS27R
x1 mesureur laser RENISHAW NC4 TX pour le réglage des outils et la détection des bris d'outil
x68 pinces de tournage type F35
x9 cônes de fraisage / tournage HSK-40E
x1 embarreur IEMCA BOSS 332 E
x1 refroidisseur de broche
x1 groupe froid pour liquide de coupe
x1 aspirateur de brouillard ELBARON
x1 lampe d'état 3 couleurs
x1 dispositif automatique d'extinction d'incendie CO2 (à faire vérifier par l'acheteur par un organisme compétent)
x1 ensemble de manuels techniques
Prix HT sur demande, chargement sur camion inclus.
Possibilité d’expédition dans toute la France ainsi qu’à l'international.
Plus de photos et détails sur demande.
Descriptif technique à titre indicatif, sans engagement de notre part.
machine similaire aux mikron , hermle , dmg mori , mazak , hedelius , axa , chiron , matec , reiden , lagun, haas , alzmetall mais également fraiseuse perceuse et taraudeuse , rectifieuse à commande numérique (cnc)
