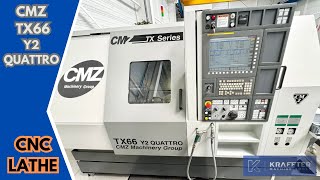

CMZ TX66 Y2 Quattro metal lathe
SAINT-GENIX-LES-VILLAGES
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+33 4 86 11...
Show
+33 4 86 11 77 77
TECHNICAL CHARACTERISTICS :
CNC control : FANUC 31i - MODEL A
Distance between chucks : 639 [mm]
Max. turning diameter : 255 [mm]
Height of centers over cariage : 270 [mm]
Stroke Z1 axis : 500 [mm]
Stroke X1 axis : 190 [mm]
Stroke Y1 axis +/- : 40 [mm]
Stroke Z2 axis : 500 [mm]
Stroke X2 axis : 190 [mm]
Stroke Y2 axis +/- : 40 [mm]
Rapid traverse rate X axis: 16000 [mm/min]
Rapid traverse rate Z axis: 20000 [mm/min]
Rapid traverse rate Y axis: 12000 [mm/min]
Axes acceleration: 1g
Spindle nose: ASA 8" A2
Max. bar diameter: 66 [mm]
Spindle throughbore: 77 [mm]
Max. spindle speed: 4000 [rpm]
Spindle power: 15 [kW]
Spindle torque: 136 [Nm]
Counter spindle nose: ASA 6" A2
Max. bar diameter counter spindle: 52 [mm]
Counter spindle throughbore: 61 [mm]
Counter spindle stroke: 635 [mm]
Max. counter spindle speed: 5000 [rpm]
Counter spindle power: 7.5 [kW]
Counter spindle torque: 68 [Nm]
Turret indexing time: 0.1 [s/pos]
Number of tool stations - Turret 1: 12
Number of tool stations driven - Turret 1: 12
Max. speed driven tools - Turret 1: 6000 [rpm]
Number of tool stations - Turret 2 :12
Number of tool stations driven - Turret 2: 12
Max. speed driven tools – Turret: 2 6000 [rpm]
Live tools power: 18 [kW]
Total power required: 65 [kVA]
Supply voltage: 400 [V]
Weight: 9600 [Kg]
EQUIPMENT INCLUDED:
- Chip conveyor
- Bar feeder interface
- High pressure pump
- RENISHAW RP3 tool probe
- Servo type programmable parts recuperator
- Pneumatic parts ejector
- 13 axial live tool holders
- 1 radial live tool holder
- 12 fixed tool holders
- HAINBUCH collet chuck (for SK65BZI collets)
- SMW AUTOBLOK 175 BB 3-jaw concentric chuck
- Technical documentation CMZ
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed
Caractéristiques techniques :
Année : 2012
Type de CN : FANUC 31i - MODEL A
Distance entre mandrins : 639 [mm]
Diamètre maxi. usinable : 255 [mm]
Diamètre admissible au-dessus du chariot : 270 [mm]
Course axe Z1 : 500 [mm]
Course axe X1 : 190 [mm]
Course axe Y1 +/- : 40 [mm]
Course axe Z2 : 500 [mm]
Course axe X2 : 190 [mm]
Course axe Y2 +/- : 40 [mm]
Vitesse avances rapides axe X : 16000 [mm/min]
Vitesse avances rapides axe Z : 20000 [mm/min]
Vitesse avances rapides axe Y : 12000 [mm/min]
Accélération déplacement des axes : 1g
Nez de broche : ASA 8" A2
Diamètre maxi. en barre : 66 [mm]
Diamètre de passage en broche : 77 [mm]
Vitesse maxi. Broche : 4000 [tr/min]
Puissance broche : 15 [kW]
Couple broche : 136 [Nm]
Nez de contre-broche : ASA 6" A2
Diamètre maxi. en barre contre-broche : 52 [mm]
Diamètre de passage contre-broche : 61 [mm]
Course contre-broche : 635 [mm]
Vitesse maxi. contre-broche : 5000 [tr/min]
Puissance contre-broche : 7.5 [kW]
Couple contre-broche : 68 [Nm]
Temps d'indexation tourelle : 0.1 [s/pos]
Nombre de postes - Tourelle 1 : 12
Nombre de postes motorisés - Tourelle 1 : 12
Vitesse maxi. outils tournants - Tourelle 1 : 6000 [tr/min]
Nombre de postes - Tourelle 2 : 12
Nombre de postes motorisés - Tourelle 2 : 12
Vitesse maxi. outils tournants - Tourelle 2 : 6000 [tr/min]
Puissance outils tournants : 18 [kW]
Puissance installée : 65 [kVA]
Tension d'alimentation : 400 [V]
Poids : 9600 [Kg]
ÉQUIPEMENTS INCLUS :
- Convoyeur à copeaux
- Interface embarreur
- Pompe haute pression
- Palpeur outil RENISHAW RP3
- Récupérateur de pièces
- Ejecteur de pièces pneumatiques
- 13 porte-outils tournant axiaux
- 1 porte-outil tournant radial
- 12 porte-outils fixes
- Mandrin à pinces HAINBUCH (pour pinces SK65BZI)
- Mandrin 3 mors concentriques SMW AUTOBLOK 175 BB
- Documentation technique CMZ
Machine visible sous tension pour essais en nos locaux, sur RDV.
Prix HT sur demande, chargement sur camion inclus.
Possibilité d’expédition dans toute la France ainsi qu’à l'international.
Plus de photos et détails sur demande.
Descriptif technique à titre indicatif, sans engagement de notre part.
