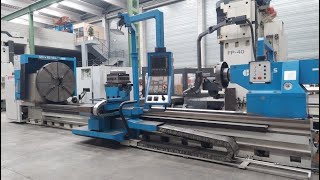

Geminis GHT9 G2 1600×6000 metal lathe
Barcelona6863 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+34 678 66 ...
Show
+34 678 66 35 84
Spain, Barcelona
Spain, España
Spain, España
Spain, España
Spain, Barcelona
Spain, Barcelona
Spain, Donostia
Spain, España
50 Hz
Spain, Barcelona
Spain, Barcelona
50 Hz
Spain, Barcelona
Spain, España
Spain, España
Spain, Barcelona
Spain, Barcelona
Spain, Barcelona
Spain, Barcelona
Spain, España
Reference: 218-B004
Distance between centers: 6000 mm
Height centers: 800 mm
Max swing over bed: 1600 mm
Max swing over slide: 1225 mm
Main spindle hole diam: 150 mm
Speed range:
4
Speed range I: 0-90 rpm
Speed range II: 0-180 rpm
Speed range III: 0-355 rpm
Speed range IV: 0-710 rpm
Cross slide travel: 830 mm
Quill diameter: 320 mm
Quill travel: 250 mm
Year: 2011
Equipped with:
Control: Siemens Sinumerik 840 D Shop Turn
4 independent jaw chuck: Ø 1400 mm
4 independent jaw chuck: Ø 560 mm
Square Auto Turret: SAUTER 4 pos - Ø 320x320 mm
Tailstock and quill: motorized
Chip conveyor: Yes
1 steady rest: Ø 100-500 mm
1 steady rest: Ø 500-900 mm
Características técnicas del torno cnc GEMINIS GHT9 G2 1600×6000
Referencia: 218-B004
Distancia entre puntos: 6000 mm
Altura de centros: 800 mm
Ø sobre bancada: 1600 mm
Ø sobre carro: 1225 mm
Ø agujero eje principal: 150 mm
Gama velocidades:
4
Gama I de velocidad: 0-90 rpm
Gama II de velocidad: 0-180 rpm
Gama III de velocidad: 0-355 rpm
Gama IV de velocidad: 0-710 rpm
Recorrido del carro transveral: 830 mm
Ø caña: 320 mm
Curso de la caña: 250 mm
Peso máx. entre puntos 20 ton
Peso máx. admitido con las dos lunetas (entre 4 y 5 ton cada una) 30 ton
Dimensiones y peso de la máquina: 10.150 x 2.550 mm 30 ton
Año: 2011
Equipado con:
Control: Siemens Sinumerik 840 D Shop Turn
Plato 4 garras independientes: Ø 1400 mm
Plato 4 garras independientes: Ø 560 mm
Torreta automática cuadrada: SAUTER 4 pos - Ø 320x320 mm
Contrapunto y caña: motorizado
Extractor de virutas: Sí
1 luneta: Ø 100-500 mm
1 luneta: Ø 500-900 mm
