FAVRETTO
Model
MB 100 DGT - PLUS
Year
2011
Observations
Grinding machine for flat surfaces and profiles
With a 1200 mm table, equipped with SIEMENS control and multiple automatic systems (lubrication, cooling, grinding wheel compensation). Ideal for demanding work on medium-large parts in sectors such as tooling, precision machining or molds.
Working hours: 17,500h.

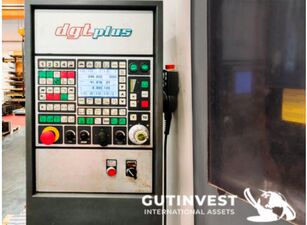

· Control: SIEMENS + FAVRETTO system
· Grinding area: 1200 x 600 mm
? WORK CAPABILITIES
· Maximum grinding length: 1200 mm
· Maximum grinding width: 600 mm
· Grinding height: 550 mm
· Table top: 1200 x 400 mm
· Table speed: 1 - 40 m/min
· Table load without magnetic plate: 1200 kg
· Table load with magnetic plate: 975 kg
? GRINDING SPINDLE
· Engine power: 11 kW
· Muela: 406 x 152,4 x 100 mm
· Speed: 1400 rpm
? AXES AND ROUTES
Eje longitudinal (Z)
· Fast forward: 5 m/min
· Adjustable feed: 1 - 50 m/min
· Continuous feed: 0 - 2000 mm/min
· Minimum resolution: 0.001 mm
· Useful travel: 500 mm
· Total travel: 530 mm
Vertical Axis (Y)
· Fast Forward: 1.5 m/min
· Minimum resolution: 0.001 mm
· Useful travel: 610 mm
· Total travel: 645 mm
? DIMENSIONS AND WEIGHT
· Dimensions (L x W x H): 4450 x 2935 x 2540 mm
· Total weight: approx. 6700 kg
· Installed power: approx. 25 kW
? STANDARD EQUIPMENT
· Grinding wheel
· Complete wheel holder flange
· Grinding wheel extractor
· Balancing device
· Adjustment Tool Set
· Manual in German
· CE compliance
? ADDITIONAL FEATURED EQUIPMENT
· Electro-permanent magnetic plate (1000 x 500 mm)
· Magnetic force regulation system
· Cooling system with paper filter and magnetic separator
· Frequency inverter for grinding wheel speed control
· Automatic wear compensation
· 24V work lighting
· Suction system (2100 m³/h)
· Cleaning gun
· Electronic Steering Wheel (JOG)
· Eight new grinding wheels are included
? AUXILIARY SYSTEMS
· Hydraulic unit
· Magnetic chip separator
· Independent cooling system
